Available on Request
R454B AIM Act
Authorized DealerFree FreightAHRI CertifiedAIM Act Compliant
ACiQGas/Electric Packages

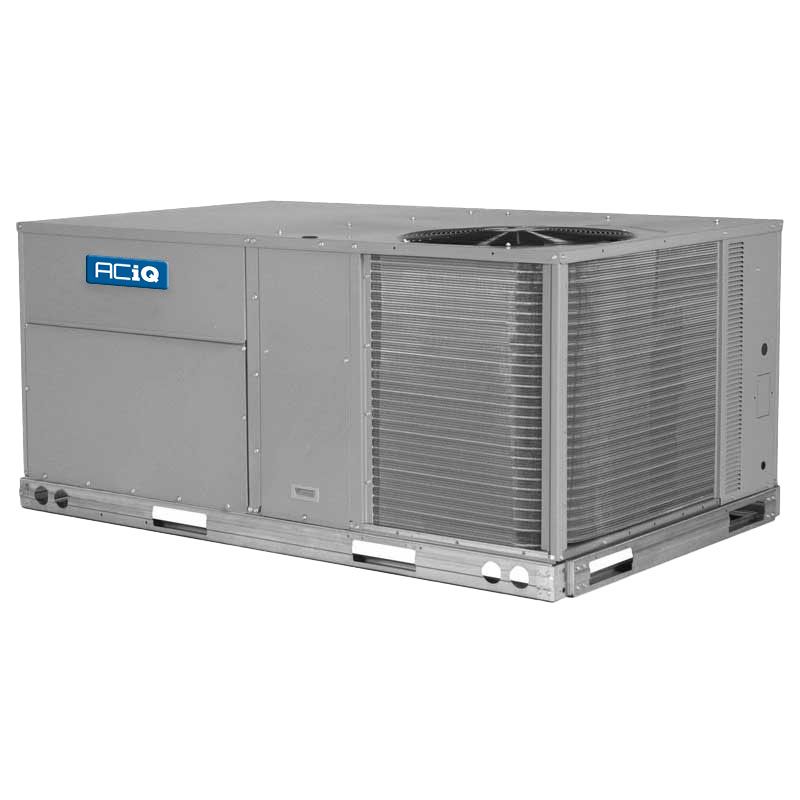

ACIQ 3 Ton 90,000 BTU 13.4 SEER2 Gas/Electric Light Commercial Packaged Unit Medium Heat - 208/230V 3 Phase - R454B
3 Ton
Cooling Capacity
34,400 BTU
BTU Output
13.4 SEER2
Efficiency Rating
R454B
Refrigerant
Three Phase
Electrical Phase
R454B Compliant — AIM Act Ready for new commercial installations
SKU: RGF036HE2A0AAA· MPN: RGF036HE2A0AAA
$0.00
Qty:
1
Full submittal package available — spec sheet, AHRI certificate, installation manual and wiring diagram. Download below or request via email.
Or call 1-800-XXX-XXXX — HVAC specialists available Mon–Fri 7am–6pm CT
Authorized ACiQ Commercial Dealer
Ships in 3–7 Business Days via Freight Carrier
Manufacturer Warranty Included
Full Submittal Documentation Package
Product Description
This 3-ton packaged unit is well-suited for light commercial applications such as small retail stores or office spaces. Featuring a SEER2 rating of 13.4, it delivers efficient climate control while using the environmentally-friendly R454B refrigerant. Designed for three-phase 208/230V power, this system provides 90,000 BTUs of heating capacity to keep your facility comfortable year-round. The ACIQ brand is known for its durable construction and reliable performance, making this an excellent choice for HVAC contractors, facility managers, and building owners seeking a versatile light commercial solution.
Specifications
Cooling Capacity3 Ton (34,400 BTU)
SEER2 Rating13.4
RefrigerantR454B
PhaseThree Phase
Voltage208/230v 3 Phase 60 Hz
Unit Weight522 lbs
Dimensions (LxWxH)33 3/8"x46 5/8"x74 3/8"
Refrigerant ComplianceR454B — AIM Act Compliant
R454B Refrigerant — AIM Act Compliance
What R454B Means for Your Project
R454B is a low-GWP refrigerant blend approved for new commercial installations under EPA AIM Act regulations. With a GWP of 466, it provides excellent environmental compliance while maintaining system efficiency. R454B requires A2L-rated handling procedures.
Compliance Checklist
Approved for new commercial builds post-2025
Compliant with EPA AIM Act phase-down schedule
GWP: 466 (vs R410A: 2,088)
Reclamation guidelines apply — consult your refrigerant recovery contractor
