Available on Request
R454B AIM Act
Authorized DealerFree FreightAHRI CertifiedAIM Act Compliant
TranePackaged AC Units

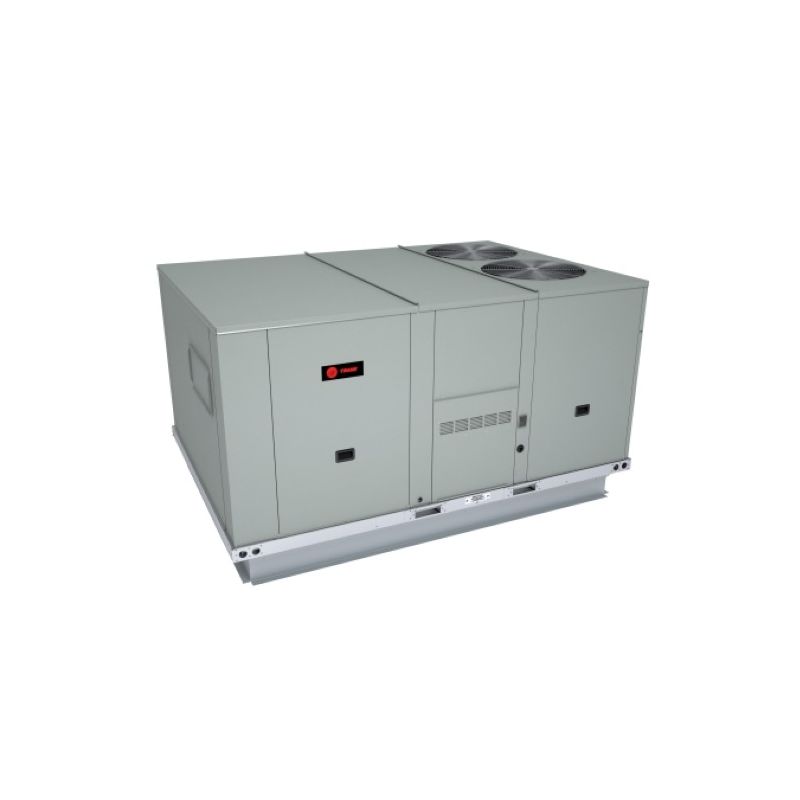

Trane 5 Ton 14 SEER Commercial Packaged Air Conditioner - Foundation Series - 208/230V 3 Phase - R454B
5 Ton
Cooling Capacity
59,500 BTU
BTU Output
14 SEER2
Efficiency Rating
R454B
Refrigerant
Three Phase
Electrical Phase
R454B Compliant — AIM Act Ready for new commercial installations
SKU: EDK060A3E0A· MPN: EDK060A3E0A
$0.00
Qty:
1
Full submittal package available — spec sheet, AHRI certificate, installation manual and wiring diagram. Download below or request via email.
Or call 1-800-XXX-XXXX — HVAC specialists available Mon–Fri 7am–6pm CT
Authorized Trane Commercial Dealer
Ships in 3–7 Business Days via Freight Carrier
Manufacturer Warranty Included
Full Submittal Documentation Package
Product Description
This 5-ton commercial packaged air conditioner is ideal for retail stores, restaurants, and other small to medium-sized commercial spaces. Utilizing the environmentally friendly R454B refrigerant, this system delivers a 14 SEER efficiency rating, ensuring optimal energy performance. Designed with a three-phase 208/230V power supply, this Trane unit provides reliable and consistent cooling for your facility. Engineered to withstand the demands of commercial applications, this Foundation Series air conditioner is the perfect choice for HVAC contractors, facilities managers, and building owners seeking a dependable and efficient cooling solution.
Specifications
Cooling Capacity5 Ton (59,500 BTU)
SEER2 Rating14
RefrigerantR454B
PhaseThree Phase
Voltage208 / 230 V. 3 Phase 60 Hz
Unit Weight586 lbs
Dimensions (LxWxH)42.56"x48"x76.81"
Refrigerant ComplianceR454B — AIM Act Compliant
R454B Refrigerant — AIM Act Compliance
What R454B Means for Your Project
R454B is a low-GWP refrigerant blend approved for new commercial installations under EPA AIM Act regulations. With a GWP of 466, it provides excellent environmental compliance while maintaining system efficiency. R454B requires A2L-rated handling procedures.
Compliance Checklist
Approved for new commercial builds post-2025
Compliant with EPA AIM Act phase-down schedule
GWP: 466 (vs R410A: 2,088)
Reclamation guidelines apply — consult your refrigerant recovery contractor
